Pipingmind
Open your isometric in 3D within seconds.

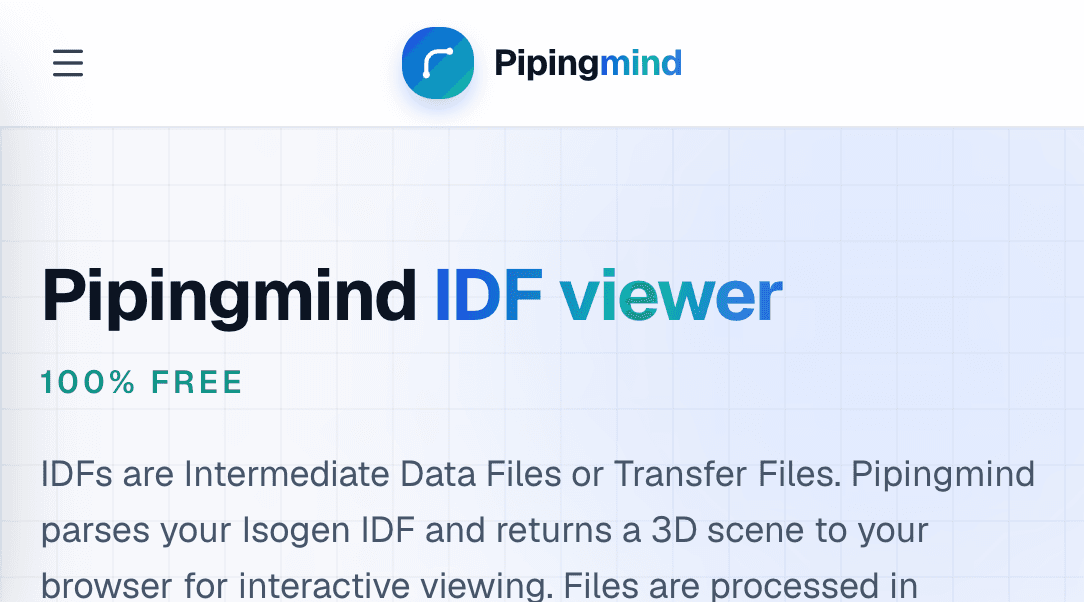

A free Isogen IDF viewer for piping engineers. Drop a file, walk the network, measure true lengths, and catch issues before fabrication — in the browser.
The idea
Drawings stay flat. The pipe does not.
Isogen IDFs already hold the geometry. Pipingmind simply lets you stand inside it — no install, no account, no charge.
01
See the whole network
Drop one isometric, or overlay several. The complete piping system appears in a single 3D scene.
02
Measure what is real
Snap between elbows, supports and picked points. Read true X, Y, Z deltas — not a flattened drawing.
03
Catch it before fabrication
Colour-code spools, check connectivity, and walk the line before drawings leave the office.
In the viewer

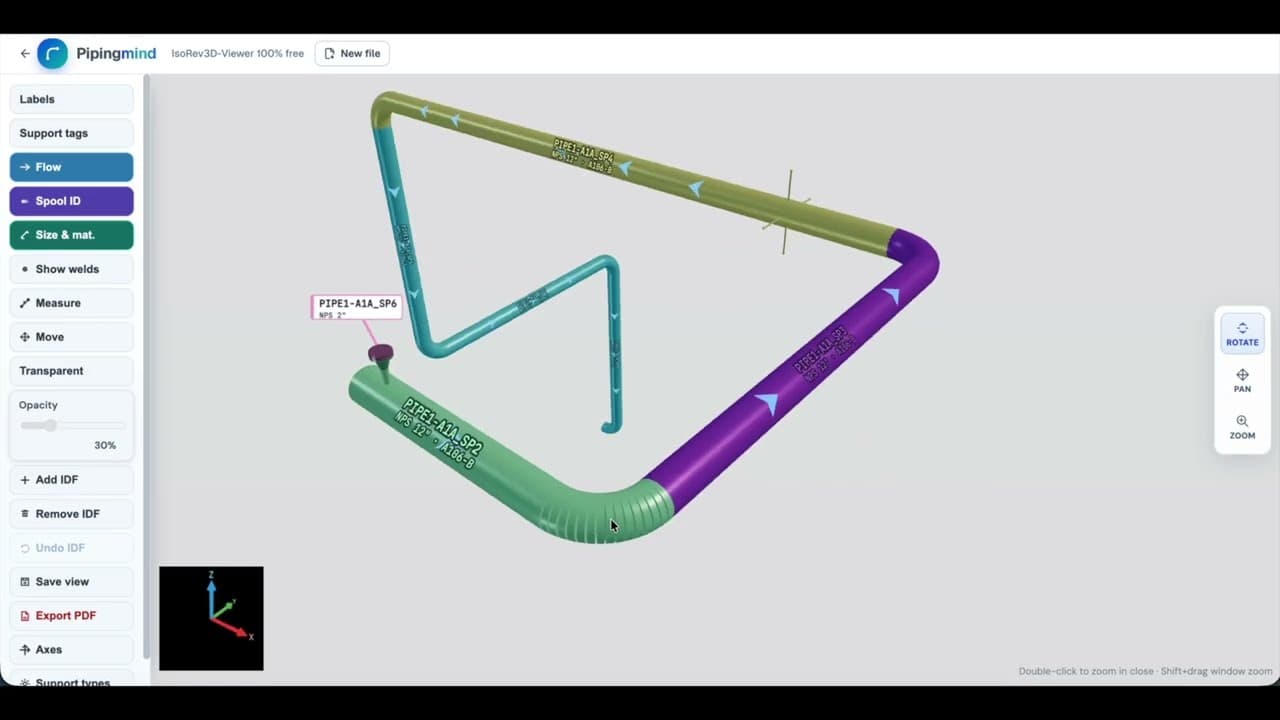

Colour-coded spools. True lengths. One scene.
How it works
Three steps
01
Drop an IDF
One file or many. Pipingmind builds the 3D scene in memory and does not keep the upload.
02
Walk the line

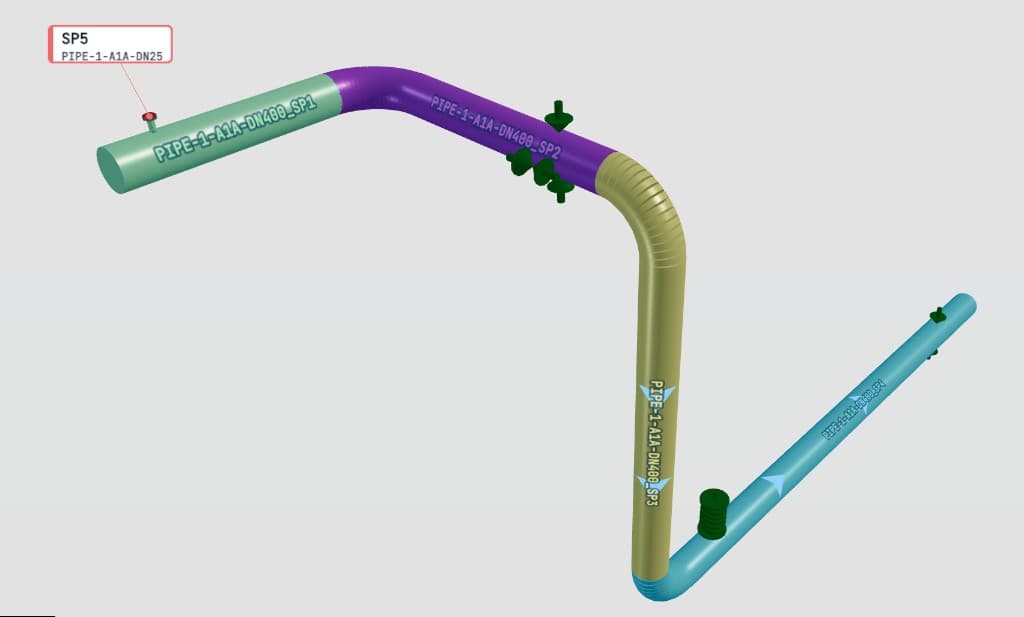

Rotate, zoom, overlay isometrics and paint each spool a distinct colour.
03
Measure and export
Align layers by delta, take true lengths, then export a PDF from the browser.
Live now
Try it free at pipingmind.com
Open the viewer, drop in an IDF, and walk the line in 3D.
Launch Pipingmind
